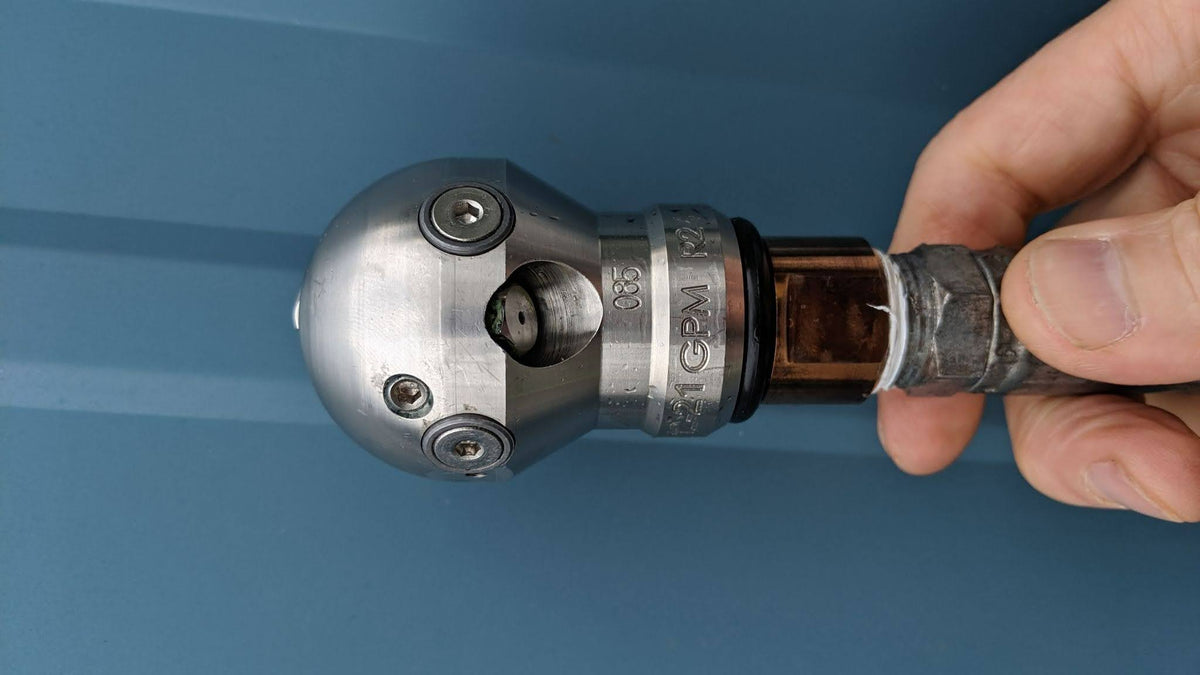

Jetter Nozzles: How to Extend Their Life & Performance

You’re on a job, and the nozzle that used to unstop this line in one pass now takes three. The gauge-pressure looks fine, but the impact just isn’t there.

A plugged nozzle-orifice is a huge loss of jetting efficiency. It eliminates the water-jet cleaning power of that port and throws the nozzle out of balance, which is why it’s wise to inspect nozzles for plugged jets every day. Worn-out orifices can cost you even more. High-velocity water gradually wears grooves and channels into each orifice, turning a sharp, cohesive water-jet into a spray or even a weak mist. Your water-jet “knives” have gone dull.

Weaker impact means slower cutting, scouring, and flushing, and more time on every job. That’s lost profit. This guide covers a practical jetter nozzle maintenance routine, plus when a repair kit can save a nozzle instead of buying new. Jetters Northwest stocks jetter nozzle repair kits in our online store when you need them.

Why Nozzle Maintenance Matters More Than Most Operators Think

Most operators judge their jetter by the numbers on the gauge. The trouble is, the gauge only tells part of the story.

PSI by itself doesn’t tell you much. Real pressure is what GPM and PSI produce together, and that combined force is what drives impact at the nozzle. That’s a big reason the nozzle is the most impactful component on your jetter. It controls how your machine’s GPM and PSI actually get put to work in the pipe.

Water-jet impact is what actually cuts, scours, and flushes a line. A worn or plugged nozzle throws that impact off, even when the pressure-gauge numbers look fine. Running a worn nozzle is like trying to cut with a dull saw blade. You’ll still make progress, but you’ll work harder for every foot of pipe.

Staying ahead of wear means faster jobs, fewer callbacks, and more profit. That’s where jetter nozzle maintenance earns its keep …

Signs Your Nozzle Needs Maintenance

A nozzle usually gives you clues before it stalls a job. Here’s what to watch for, from plugged orifices to wear that builds up over time.

Plugged Orifices

In the field, a plugged orifice is a far more common problem than losing one. A plugged orifice can’t create a water-jet, so it blocks the GPM potential of that orifice and reduces the GPM power of the whole nozzle. Here’s what that looks and feels like mid-job:

• Full PSI at half-throttle or less. If your jetter hits full PSI on the gauge at half-throttle or less, that’s a big clue that even experienced operators miss. With one or more orifices plugged, it takes less GPM (and less RPM from the throttle) to push the gauge to maximum PSI. That tells you the nozzle isn’t flowing the water it was sized for.

• Sudden loss of hose-pulling power. A plugged jet reduces the nozzle’s GPM traction needed to pull the hose into the pipe. Further, it knocks the thrust out of balance, so the nozzle tends to push into the pipe wall instead of driving straight ahead.

Wear Patterns by Nozzle Type

Every nozzle wears, but different nozzles show it in different ways. Match your inspection to the job each nozzle was built for:

• Standard nozzles. Simple, basic nozzles get the same orifice checks as everything else on the truck.

• Chisel nozzles. Most operators consider a chisel a slightly premium nozzle, and it needs the same inspection routine as the rest of your collection.

• Grenade nozzles. Remember, grenades pull debris, they don’t push it. Wear shows up differently around the pulling jets, so give those jets a close look.

• Rotating nozzles. These depend on strong, cohesive water-jets to do their work, so orifice wear hits them especially hard:

• Root-cutting nozzles are hugely affected by weak water-jets from worn orifices. When the sharp jets turn to a misty spray, you lose the cutting power you bought the nozzle for.

• Grease-Hog and wall-scouring nozzles need those jets reaching the pipe wall to scour away buildup, so keep them on the same orifice checks.

• Basic spinning “polisher” nozzles get the same inspection routine as the rest of your rotating nozzles.

Reduced Impact and Weaker Performance

Sometimes the clearest sign is the results. If your nozzle isn’t clearing blockages and buildup the way it used to, or you’re making multiple passes to unstop a line that used to clear in one, your impact has dropped. That’s often nozzle wear catching up with you.

PRO TIP: Inspect orifices at the start and end of every job, not just when a problem shows up.

A Simple Daily and Weekly Maintenance Routine

None of this takes long. A few minutes at shutdown catches problems before they cost you a job.

1. Check that all nozzle orifices are clear after every job. Do a quick visual “fountain test” after shutdown. As you lift the nozzle out of the line, let it dangle and watch its orifices. Residual water should fountain up from each orifice. If one doesn’t, it’s likely plugged. If none do, hold the hose from a higher point so more residual water can gravity down and spill out each orifice.

2. Clear any plugged orifices before the nozzle goes back in the truck. Use an orifice-cleaning tool.

3. Check hose and nozzle connections for wear at each changeover.

4. Spray nozzles down before storage. Use WD-40 or an equivalent to prevent corrosion and hard-water buildup.

5. Check your premium nozzles for worn-out orifices. Think root cutting nozzles and other premium heads. Routinely test them above ground, where you can see their water-jets launching under pressure. They should “carry” as a good, long stream without quickly turning to mist.

SAFETY FIRST: Secure the hose end and nozzle to a heavy pallet or fence so it can’t flail into people or property.

6. Learn the “logic” of each nozzle. Know what each nozzle was designed to do so you can rotate nozzle types across jobs so no single nozzle carries all the wear.

PRO TIP: When a nozzle has to be pushed through a tight elbow or trap, ease it through. Forcing it accelerates wear on the nozzle body and can mash the forward orifice, reducing or plugging off its water-jet power.

When to Repair with a Jetter Nozzle Repair Kit or Replacement Orifices vs. Replace

A worn nozzle doesn’t always mean you need a new nozzle. Jetters Northwest carries jetter nozzle repair kits and replacement orifices built to bring a worn or seized nozzle back into service instead of buying new. Our Reaper nozzle repair kits, for example, come in forward-rotary, rear-orifice, and combined versions.

Here’s the general rule of thumb:

• Repair it: Plugged or moderately worn orifices, if they’re replaceable, are usually a quick kit fix. Worn or seized internal rotating-parts are often available in a repair kit.

• Replace it: An excessively worn or cracked nozzle body, or stripped threads, means it’s time to replace the entire nozzle.

Either way, think tailored, not customized. The goal is matching the right nozzles to the jobs you actually run, not buying every option on the shelf.

NEED HELP DECIDING: Not sure if a jetter nozzle repair kit or a new nozzle is the right call? Give us a call at (877) 901-1936, or watch the full demos on the Jetters Northwest YouTube channel.

Nozzle Logic: Building a Collection That Covers the Job

Maintenance keeps the nozzles you own working. Nozzle logic makes sure you own the right ones.

You don’t need every nozzle, just the right nozzles for the mains and branch lines you actually run. Most operators build their collection over time as their work expands, adding specialty nozzles like a Warthog or a Root Ranger when the jobs call for them. After all, the one nozzle you don’t have will be the one that stalls you.

A jetter without a nozzle is like a van with no wheels. But wheels only get you there if the tires are in good shape. Every nozzle you add and use is one more to add to your maintenance routine, so the entire nozzle collection you’ve built is ready to work when you need it.

Keep Your Nozzles Ready to Cut and Scour!

Plugged and worn orifices don’t announce themselves. They show up as extra passes, lost hose-pulling power, and jetting jobs that run long – or simply don’t get done. Staying on top of jetter nozzle maintenance keeps your water-jet impact strong, maximizes your time efficiency on every job, and gets more life out of every nozzle you own.

Jetters Northwest has been a Seattle Pump & Equipment Co. product line for 20+ years, backed by 50+ years of jetting service experience. We’ve seen what worn nozzles cost operators, and we stock what it takes to keep them running.

Get equipped, and get jetting. Shop our jetter nozzle kits and find what your rig needs.
