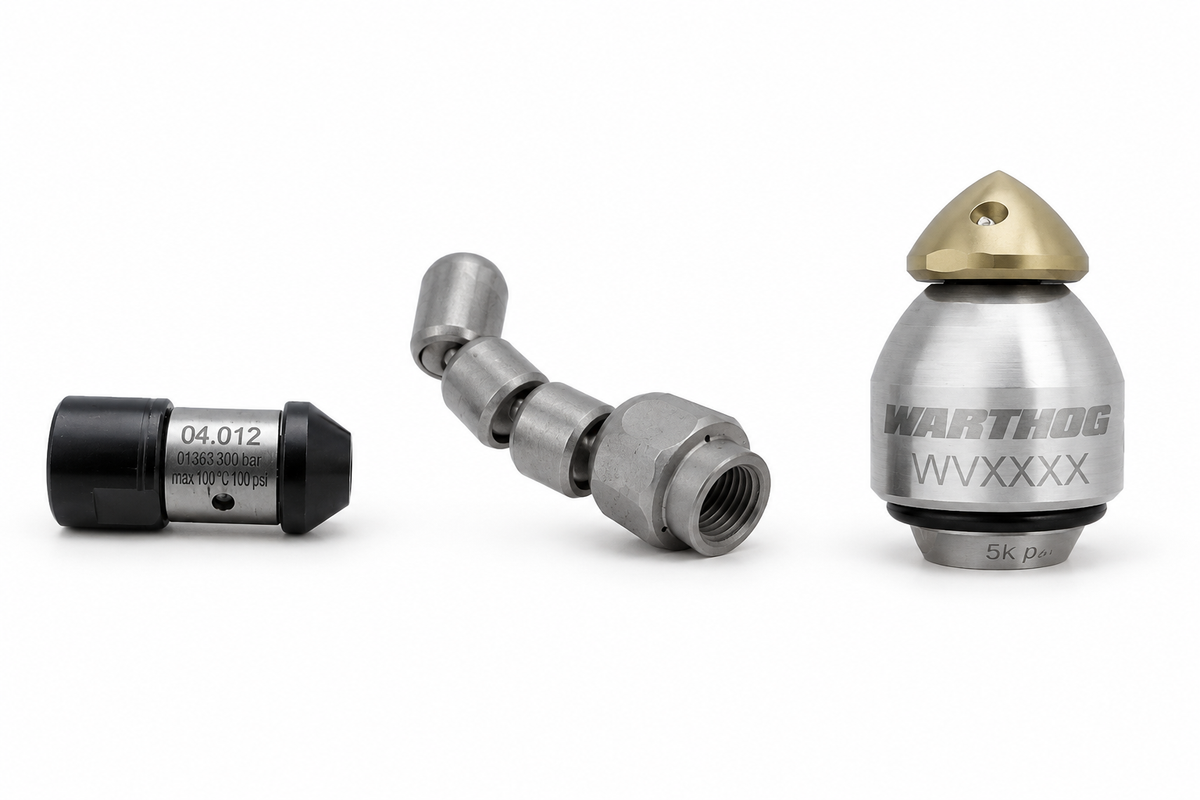

Choosing the Right Nozzles for Jetting Small-Diameter Drains

Okay if you’ve read the hose-choices blog for jetting smaller drains you know that your choice of jetting hose determines where your nozzle can go; now your nozzle choice will determine what you can accomplish once you get there! Not every nozzle handles every situation, and in small-diameter work the wrong choice can mean a stalled hose, a wasted service call, or damage to the line. This is where “nozzle logic” meets real job conditions, and these are the nozzle types worth using to jet 3-inch and smaller drains, including lines with tight bends and P-Traps:

Penetrating Blockages

Restoring flow to a drain or sewer is often job #1, and when you're attacking a blockage in a small-diameter line you need a nozzle with strong “forward jetting” action. That means a nozzle design that has one or more orifices facing forward, giving you water-jet penetrating force rather than just rearward jet action.

A good penetrating nozzle for small-line work will typically be compact enough to navigate tight bends without snagging, have forward-jet action, and enough rear thrust-jets to still pull the hose forward into the drain. Look at Jetters Northwest's small-diameter penetrating nozzle options for configurations that fit 1.5 to 2-inch pipe work.

Passing Through P-Traps to Enter the Drain Line

This is a step that catches a lot of operators off guard. If you're entering the line through a 3-inch or smaller P-trap, your nozzle selection becomes very limited before you even think about what's in the pipe.

Most standard nozzles won't make it through a P-trap; common nozzles will often pass all the way through the U-bend at the base of the trap but then hang up in the final bend that re-enters the run of the drainline. Okay, then what nozzles will typically pass through a p-trap? Your realistic options narrow down to a nozzle with a drop-head leader such as the Knucklehead, or a ball nozzle that’s weighty enough to “fall” into the run from the trap. These are designed to articulate or roll through that last bend without hanging up.

Here's the part that matters for job planning: once your nozzle passes through the P-trap, you're committed to that nozzle. You can't change to a Grease-Hog or any other specialty nozzle without pulling the hose back out through the trap. If you go in with a Knucklehead nozzle to pass the P-trap, that's what you're cleaning the line with. Know what's in the pipe before you choose your entry nozzle, and plan accordingly.

Grease and Debris Buildup

For grease-heavy small lines, you want a nozzle that emulsifies as it cleans, using the water to break up, dilute, and flush the grease away rather than just pushing it downstream. Rotating Grease-Hog nozzles are designed to scour grease out of the line, leaving a clean pipe-wall.

But a nozzle that’s designed to scour grease from the pipe-wall might have no ability to break through a hard stoppage. Grease in a 2-inch line can easily pack solid across the full bore, so you might need to open the clog with a penetrator or coring nozzle before doing a grease-scour.

Flushing and Maintenance Jetting

Not every small-line job involves a hard blockage. Soft clogs and preventive maintenance runs call for a lighter-duty approach. You don't need aggressive penetrating orifices or cutting action. You need consistent, even coverage that cleans the pipe walls and keeps flow moving.

For routine flushing in small-diameter lines, a standard all-rear jet nozzle with the right orifice configuration for your jetter's GPM/PSI output is often sufficient, and offers good hose-pulling power for time-efficiency. The goal is steady water movement and wall cleaning, not intense scouring. Running a more expensive rotating nozzle on a routine maintenance call causes unnecessary wear on a premium nozzle without appreciably improving results.

You can browse our full 1/8 inch nozzle collection and 1/4 inch nozzle collection to see the configurations available for small-line jetting setups.

Common Mistakes Operators Make When Jetting Small-Diameter Pipe

Even experienced operators can make the wrong call when the pipe gets small. The margin for error shrinks with the pipe-diameter, and some habits that work fine in 4 and 6-inch lines can actually work against you in 2-inch and smaller lines. Here's what to watch for.

Excessive jetter-water flow into smaller pipes is probably the most common error, especially with high-GPM jetters. If the line is fully backed up, throwing excessive jetter-GPM at the problem doesn't fix it. You just get more water backing up against itself, which seriously reduces the nozzle’s water-jet cleaning-power. Select a low-to-medium GPM nozzle first, then be cautious when you throttle up the jetter’s GPM/PSI output.

Using rear-jet-only nozzles in tight bends is another common error. A high-thrust nozzle that pulls hard into a straight run will behave completely differently in a 2-inch line with multiple bends. A nozzle with no forward-facing orifices has no forward water-jet to “lubricate” between the nozzle’s nose and the wall of the elbow, thus it stalls in the bend. Be sure the nozzle can articulate and/or navigate the geometry of the line before you send it in. If you need a high-thrust “all rear jets” nozzle to pull deep into the line then choose a nozzle with a forward-leader to work through the turns.

Ignoring “hose-memory” is a smaller thing that can cause the hose/nozzle to stall in a small elbow. Jetting hoses have stiffness-memory from being coiled up for storage – especially if on a hose-reel – and in a small pipe that stiffness works against you. As you feed the hose into the pipe, try to align the curl of the hose-end with the direction of the first upcoming bend so it will wander right into the sweep of the elbow. And, of course, choose a hose diameter that's appropriate for the pipe you're entering.

Repeatedly running whatever nozzle that’s already on the hose-end is probably the most honest mistake to admit to. If the job calls for a specific nozzle type but you simply choose to run a different nozzle because it's already on the hose, you're accepting worse results from the start. The wrong nozzle may eventually get the job done, but you weren't as time-efficient as you could have been. The right nozzle for the job is the one that matches the pipe size, the blockage/buildup type, and your machine's output. That might not be the one that happens to already be connected to the jetting hose.

Building Out Your Small-Diameter Nozzle Kit

You don't need every small nozzle on the market. What you need is a handful of the right types to handle what your market actually throws at you. Most operators who run any volume of residential and commercial drain work will see the same core problems come up again and again: grease, sludge, hard stoppages, and routine maintenance. Build your kit around those scenarios. The nozzle maintenance and performance guide is also worth a read before you spec out your kit, so you know what to look for as nozzles wear.

A practical small-diameter starter kit for 1.5 to 2-inch line work covers a few bases:

• A compact penetrating nozzle for hard blockage entry

• A Knucklehead and/or ball nozzle for P-trap navigation

• A grease-specific rotating-nozzle for emulsification in packed lines

• A standard rear-jet nozzle for maintenance flushing

That's four nozzle types covering the full range of small-diameter pipe jetting scenarios. You typically won't need more than that to run tight-line work efficiently, as those four get the job done for most operators. As your jetting-work volume grows and your market throws more specialized jobs at you, you can expand your nozzle selection from there into coring nozzles and other aggressive types.

PRO TIP: the one nozzle that you don't have is the one that stalls the job. Build the kit before the situation forces you to improvise.

Match the Nozzle’s “Orificing” to Your Jetter’s Output

We’ve covered choosing the right types, but are its orifices calibrated (sized) to match your specific jetter? This is where knowing your jetter's max GPM and PSI enters the picture, though that matters a lot more for some hydro-jetters than others...

When Jetter GPM/PSI Output Does & Doesn’t Matter to Mini-Nozzle Orificing

When it does NOT matter: if you're running a larger jetter that comes stock with 3/8 or 1/2 inch hose, you have a surplus of GPM to feed smaller 1/4 and 1/8-inch nozzles. A jetter with flow specs of 5 GPM or more can feed just about any smaller hose and nozzle combination, building pressure with ease, so you won't need perfect orifice-matching for every small nozzle you buy.

When it DOES matter: operators running small electric mini-jetters do need to concern themselves with correct orifice-matching. Mini-jetters put out a very low flow-rate, typically less than 2 GPM, thus there is little room for error – its nozzles need orifices matched closely to the jetter’s specific GPM/PSI output. Orifices drilled a few thousandths of an inch too large can literally cut nozzle-pressure in half, or worse, resulting in weak water-jet velocity with very little cleaning action.

How Orifices Actually Work to Build Pressure

“Orifices” are the actual holes in the nozzle that create the water-jets. Think of them like putting your thumb over the end of a garden hose to spray something: your thumb makes the hose-exit smaller which forces the water to speed up, thus shooting out a little farther with more impact. Remove your thumb and the water flows freely but has little impact force. Nozzle orifices work the same way on a different level: they restrict flow to convert your jetter's GPM output into fast, focused water-jet streams. But the total open area across all of a nozzle's orifice jets has to be calibrated to match the water-flow (GPM) your jetter can deliver and the pressure (PSI) it can build. If the nozzle has too much open “orifice-area” for your jetter’s GPM-flow capability, the pressure will be low (not enough resistance to the flow) and the water-jets will lack velocity and cleaning impact.

PRO TIPS: The water-jet orifice-holes, which ultimately determine the nozzle's GPM/PSI capability, measure in thousandths of an inch or tenths of a millimeter, and can be of many different sizes and spray-patterns regardless of nozzle size.

When running an electric mini-jetter, nozzle orifices that are “oversized” for the machine's GPM capability will shrivel its jetting power. Know your GPM and PSI specs before you order nozzles to ensure they match up.

Stay away from 1/8” hoses; the restriction of their tiny internal flow-path will dramatically dumb-down your jetter’s GPM+PSI power. Use 3/16” inch hose with your 1/8" nozzles.

Ready to Build Your Nozzle Kit?

Every small-diameter job adds another data point to what your kit actually needs. Grease jobs, P-trap entries, hard stoppages, and routine flushing all call for different nozzle types and orifice setups, and running whatever's already on the hose because it's convenient will cost you time even when it eventually gets the job done.

Not sure which nozzles fit your machine's output? Contact us today or visit the Jetters Northwest store. Our experts will help you match nozzle types and orifice sizes to your jetter's GPM and PSI, so you're not guessing on the next call. Get equipped, and get jetting.

FAQ

What's the difference between a 1/8 and 1/4 inch jetting nozzle?

The 1/8-inch and 1/4-inch designations refers to the nozzle's inlet thread size and the hose-end threads that it will connect to. Typically, an 1/8-inch nozzle pairs with mini-jetter hoses for lines as small as 1-inch, while a 1/4-inch nozzle carries more jetter-flow for straighter 1½-inch lines and especially for jetting 2 to 3-inch small-diameter drains with 1/4" or 5/16” jetting-hoses.

What size jetting nozzle do I need for a 2-inch pipe?

Depends on how straight or bendy the line is: For 2-inch lines with multiple bends an 1/8-inch nozzle running on a 3/16-inch jetting hose is the best setup, since it navigates tight bends and p-traps the easiest. On straighter runs with sweeping elbows a 1/4-inch hose and nozzle can provide more GPM/PSI power, provided your jetter has the GPM to feed a 1/4-inch setup. Choose the hose that fits the pipeline first, then pick the nozzle type based on the blockage.

Can I use a 1/4-inch nozzle on an electric mini-jetter?

Yes but it’s not ideal. Most pros run 1/8-inch nozzles on their electric mini-jetters – especially today’s popular “lightweight” mini-jetters – due to their low water-jet flow of 1.7 GPM or less.  A 1/4-inch hose and nozzle setup generally calls for more GPM than a mini-jetter delivers, resulting in slow water-jets with weak cleaning action and poor hose-pulling thrust.

Can I get more pressure at the nozzle if I use a smaller-diameter hose?

No, and this is a common misconception: A smaller-diameter hose increases restriction and pressure inside the hose itself, which takes pressure away from the nozzle rather than empowering it. Too much “pressure drop” through the hose can also reduce the GPM reaching the nozzle. Your pressure-gauge might show more PSI but the nozzle doesn’t see it, therefore switching to a smaller hose as an attempt to increase nozzle-pressure tends to make the actual jetting-power worse, not better. Further, adding hose pressure-drop may increase the jetter’s amp-load or fuel consumption for zero benefit.
